Alex Y303 16" Rim - 28H
Brand
Alex
33.9
Details
Alex 16" Rim
Best Suits Tyre Sizes 16 x 1.5 - 3.0 *

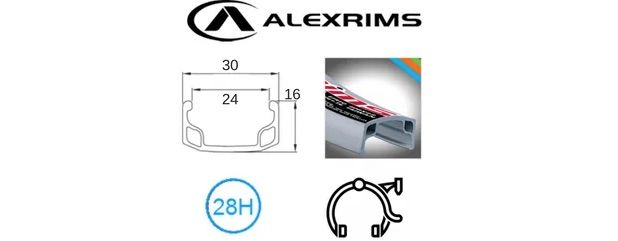

Specifications:
Colour: Silver
Nominal Diameter: 16"
Inner Width: 24mm
ETRTO Size: 24-305
Make: Alex
Model: Y303
Holes: 28
Sidewall Braking: Machined for Rim brakes
Valve Drilling: Schrader
Single or Double Walled: Single
Eyeletted: No
ERD: 296mm

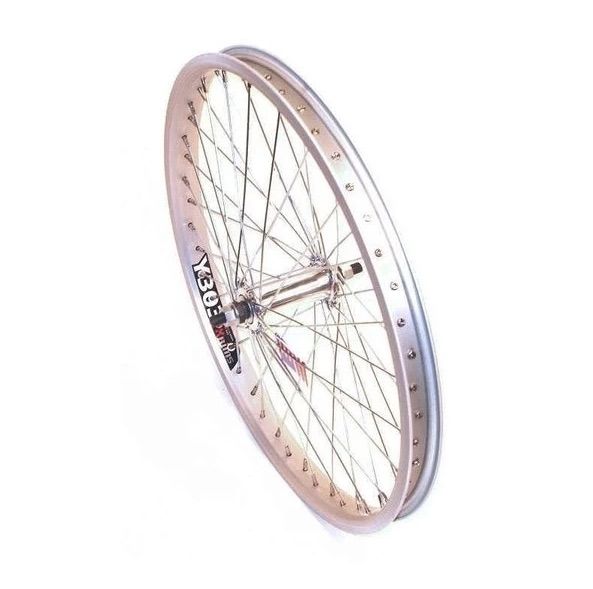

Image is of the rim in a wheel - you are buying the rim only!
Rims are sold singly
The ETRTO size designation (e.g. 21-559) indicates the width (21 mm) and the inner diameter of the tyre or rim 559 mm). This designation is unambiguous and allows a clear assignment to the rim size.
The NOMINAL diameter is the generic name given to a group of tyres/rims eg 16". In general 16" refers to the group of tyres/rims that fit 16" Kids Bikes. They will be called for example 16 x 1.5 etc..
BUT 16 x 1-1/8 tyres/rims are NOT the same diameter as the above group - they are Wheelchair Sizes and will not fit normal kids bikes.
As a general rule 16 x a decimal number ( eg 2.1) will not be compatible with 16 x a fraction ( eg 1/8).
ERD is a number used in spoke length calculations and is not to be confused for the physical size of the rim. The ERD will only be used by someone to build a wheel up from scratch.
* Will my tyre fit this rim?
The Best Suits Tyre Sizes above are based on our wheelbuilders conservative recommendation. In most cases you could fit a tyre a size or two up - but this will be entirely up to you.
Alex
Alex Global Technology has become a world leader in wheel and rim manufacture. Founded in 1992 the company has hit the mark in terms of developing lightweight, strong, durable performance products. Many professional mechanics and wheel builders specify Alex when they require a rim that is true every time, yet is reasonably priced.
The Bicycle Store is an authorised dealer of Alex wheels and rims.
