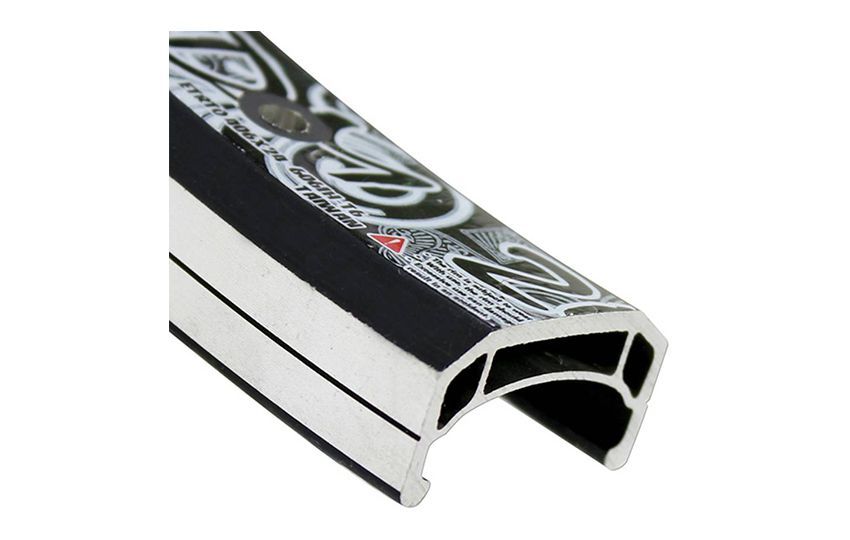

Alex DM24 26" MTB Rim - 36H
Brand
Alex
80
Details
Alex DM18 Wide 26" Rim
Robust MTB Rim for Wider Tyres
Best Suits Tyre Sizes 26 x 1.6 - 2.95*

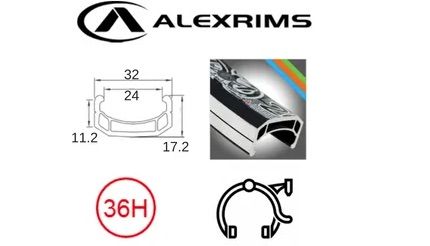

Specifications:
Colour: Black
Nominal Diameter: 26"
Inner Width: 24mm
ETRTO Size: 24-559
Make: Alex
Model: DM24
Holes: 36
Sidewall Braking: Machined for Rim brakes
Valve Drilling: Schrader
Single or Double Walled: Double
Eyeletted: Yes
Weight: n/a
ERD: 546mm
Rims are sold singly
The ETRTO size designation (e.g. 21-559) indicates the width (21 mm) and the inner diameter of the tyre or rim 559 mm). This designation is unambiguous and allows a clear assignment to the rim size.
The NOMINAL diameter is the generic name given to a group of tyres/rims eg 26". In general 26" refers to the group of tyres/rims that fit 26" MTBs. They will be called for example 26 x 2.1 etc..
BUT 26 x 1-1/8 tyres/rims are NOT the same diameter as the above group - they are Wheelchair Sizes and will not fit MTB bikes.
As a general rule 26 x a decimal number ( eg 2.1) will not be compatible with 26 x a fraction ( eg 1/8).
ERD is a number used in spoke length calculations and is not to be confused for the physical size of the rim. The ERD will only be used by someone to build a wheel up from scratch.
* Will my tyre fit this rim?
The Best Suits Tyre Sizes above are based on our wheelbuilders conservative recommendation. In most cases you could fit a tyre a size or two up - but this will be entirely up to you.
VIP: Rim production is to your order so:
- they are not returnable
- they will take 2-3 days on top of normal delivery times
Alex
Alex Global Technology has become a world leader in wheel and rim manufacture. Founded in 1992 the company has hit the mark in terms of developing lightweight, strong, durable performance products. Many professional mechanics and wheel builders specify Alex when they require a rim that is true every time, yet is reasonably priced.
The Bicycle Store is an authorised dealer of Alex wheels and rims.
